Miejsce pochodzenia: | China |
Nazwa handlowa: | BK |
Orzecznictwo: | ISO9001/ISO14001 |
Numer modelu: | D80-1.7 |
Minimalne zamówienie: | 1 set |
---|---|
Cena: | Negotiation |
Szczegóły pakowania: | Export standard wooden case |
Czas dostawy: | 20-40 working days, depends on order amount and specification |
Zasady płatności: | L/C, T/T |
Możliwość Supply: | 10 SETS per month |
Pojemność powietrza: | 80 m3 / min | Różnica ciśnień na wylocie: | 70KPA |
---|---|---|---|
Moc silnika: | 132kw | Otwór wylotowy: | DN300 (12 ”) |
Rodzaj chłodzenia: | woda | Typ napędzany: | Sprzęganie |
Podanie: | oczyszczanie ścieków, piec do wytopu, zakład przeróbki węgla, unoszenie się kopalni, gaz chemiczny, | ||
High Light: | multi stage centrifugal blowers,high pressure centrifugal blower |

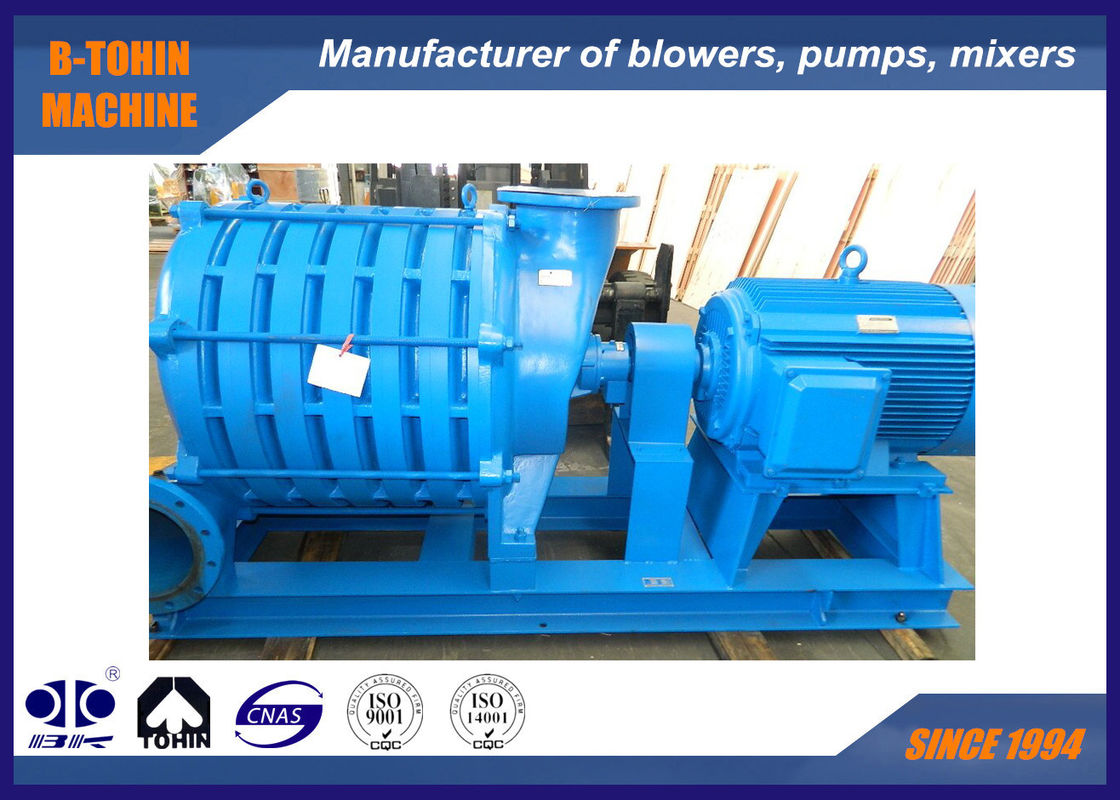

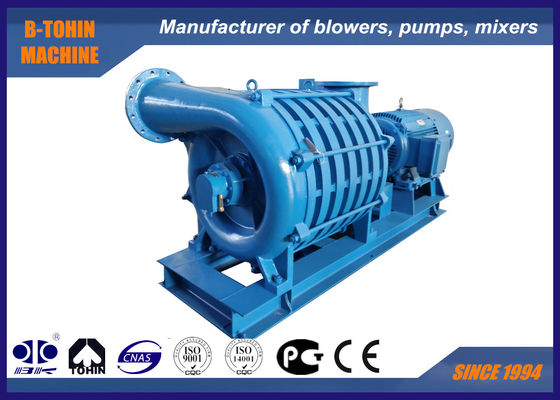

Low Noise Multistage Centrifugal Blower, wastewater treatment air blower
About D series mult-stage centrifugal blower
Specifications
Model No. |
D80-1.7 |
Discharge differential pressure |
70KPA |
Air capacity |
80m3/min |
Motor power |
132KW |
Shaft power |
110KW |
Motor type |
380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ |
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
Features
1. Vibration on bearings < 2.5mm/s for all fans and blowers
2. Long service life
3. Low noise: High efficiency type noise, sound proofed with obstacle exists, so there's nearly no noise outside the blower room.
4. Low running cost: energy consumption than other type blowers.
5. High efficiency
6. Heavy duty and sturdy construction
7. Oil free
8. Air capacity adjustable by inlet butterfly valve
Structure of blower main body
Assembling drawing of blower package
Standard supply of scope
1. Blower main body
2. Inlet muffler (with air filter)
3. Public base for motor and blower(including coupling cover)
4. Inlet manual butterfly valve
5. Motor
6. Pressure gauge
7. Mounting bolts and connection accessories
8. Check valve
