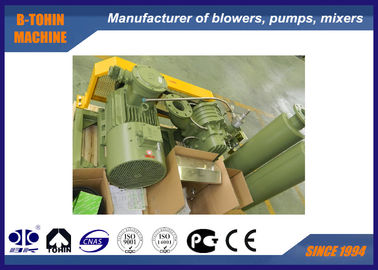

Flammable Biogas Blower , alkali and coal gas roots blower with PTFE coating

Flammable Biogas Blower , alkali and coal gas roots blower with PTFE coating

    • Flammable Biogas Blower , alkali and coal gas roots blower with PTFE coating
    • Flammable Biogas Blower , alkali and coal gas roots blower with PTFE coating
  • Flammable Biogas Blower , alkali and coal gas roots blower with PTFE coating

    Szczegóły Produktu:

    Place of Origin: China
    Nazwa handlowa: BK
    Orzecznictwo: ISO9001/ISO14001/GOST
    Model Number: YU-EG5006

    Zapłata:

    Minimum Order Quantity: 1 set
    Cena: Negotiable
    Packaging Details: Export standard wooden case
    Delivery Time: 15 to 30 working days, depends on order amount and specification
    Supply Ability: 20 SETS per month
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Capacity: 4.29-9.81m3/min Discharge differential pressure: 10-70KPA
    Bore size: DN100(4”) Cooling type: Water
    Connection type: Belt driven Belt and pulley: Biogas, waste gas, explosive medium conveying
    Anti-corrosive measure: Rotors and housing inside surface with PTFE coating





    Flammable  Biogas Blower, alkali and coal gas roots blower with PTFE coating





    Features



    1. Compact structure, inlet and outlet same construction, various kinds of installation type

    2. Integral structure of impeller and shaft, more stable in operation

    3. Water cooling structure which can improve the work condition of bearing avoiding over temperature rising.

    4. Spraying special coating (PTFE) with well corrosion resistance and stick on the impeller and the parts contacting the flow.

    5. Blower is designed for the application of special medium of acid, alkali and other corrosive gas.





    Specifications



    Model

    YU-EG5006

    Air capacity

    4.29-9.81m3/min

    Discharge differential pressure

    10-70KPA

    Rotary speed

    1000-1600rpm

    Cooling water volume

    10 l/min

    Motor type

    2.2-18.5KW

    380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option

    Installation type

    Standard: vertical type

    N.W. of blower without motor

    255kg

    Packing size Approx.

    1.45*1.0*1.35m (length*width*height)





    Parameter sheet



    Model

    Port Dia

     (mm)

    Inlet capacity (m3/min)and shaft power (kW) under various pressure

    Cooling

    water
    (l/min)

    Speed
    rpm
    0.1kgf/cm2 0.2kgf/cm2 0.3kgf/cm2 0.4kgf/cm2
    1000mmH2O 2000mmH2O 3000mmH2O 4000mmH2O
    0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa
    m3/min KW m3/min KW m3/min KW m3/min KW
    YU-EG
    5006
    100(4") 1000 5.75  1.78  5.33  2.98  5.01  4.52  4.74  5.19  10
    1150 6.77  2.04  6.35  3.43  6.02  5.20  5.75  5.97
    1250 7.44  2.22  7.02  3.73  6.70  5.65  6.43  6.49
    1350 8.12  2.40  7.70  4.03  7.37  6.11  7.10  7.01
    1500 9.13  2.66  8.71  4.47  8.39  6.78  8.12  7.79
    1600 9.81  2.84  9.39  4.77  9.06  7.24  8.79  8.31



    Model

    Port Dia

    (mm)

    Inlet capacity (m3/min)and shaft power (kW) under various pressure

    Cooling

    water
    (l/min)

    Speed
    rpm
    0.5kgf/cm2 0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2
    5000mmH2O 6000mmH2O 7000mmH2O 8000mmH2O
    0.05Mpa 0.06Mpa 0.07Mpa 0.08Mpa
    m3/min KW m3/min KW m3/min KW m3/min KW
    YU-EG
    5006
    100(4") 1000 4.50  6.39  4.29  7.58          10
    1150 5.52  7.34  5.31  8.72  5.10  9.83
    1250 6.19  7.98  5.98  9.47  5.78  10.69
    1350 6.87  8.62  6.66  10.23  6.45  11.55
    1500 7.88  9.58  7.67  11.37  7.47  12.83
    1600 8.56  10.22  8.35  12.13  8.14  13.68





    Structure of blower main body



    Flammable Biogas Blower , alkali and coal gas roots blower with PTFE coating









    Assembling drawing of blower package

    Flammable Biogas Blower , alkali and coal gas roots blower with PTFE coating







    Standard supply of scope



    1. shaft blower

    2. vacuum pressure relieve valve

    3. check valve

    4. inlet silencer(with filter)

    5. discharge silencer

    6. public base (with belt cover)

    7. rubber flexible joint and shock pad

    8. pulley

    9. pressure gauge

    10. belt

    11. bolts and nuts and other connection parts

    12. motor
